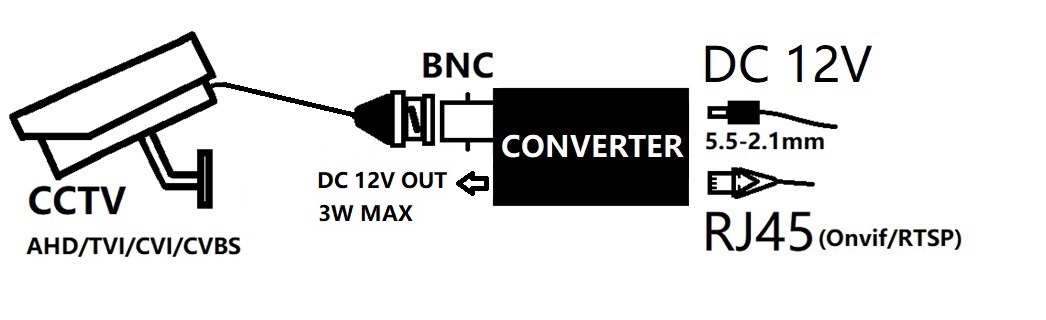

4 IN 1 CONVERTER G1 is a converter which can convert AHD/TVI/CVI/CVBS signal into net signal. BNC input, adaptive to all four signal format; RJ45 output, standard ONVIF protocol, support RTSP. It could connect to most NVR and other devices like IP Camera.
Power Supply: DC 12V 1A, Power Out: DC 12V 3W MAX.
Dimensions: 52 X 38 X 28 mm；With BNC: 66 X 38 X 28 mm.
Parameters:
|
Input System |
PAL/NTSC adaptive |
|
Input Signal |
AHD/TVI/CVI/CVBS adaptive |
|
Pixel Max |
2MP (1080P@30fps) |
|
Encoding Format |
H.264/H.265 (default) |
|
Network Interface |
RJ45 10M/100M adaptive |
|
Default IP |
Automatic |
|
User Name |
admin |
|
Password |
admin |
|
ONVIF |
Standard, Port number: 8999 |
|
RTSP |
Main stream: rtsp://XXX.XXX.XXX.XXX/av0_0 Sub stream: rtsp://XXX.XXX.XXX.XXX/av0_1 XXX.XXX.XXX.XXX is the IP address of the Converter Port number: 554(default) Users can modify the port number, add username and password as needed. Attention: After modification, the addresses of the main stream and sub stream will be changed. Please get them through software/APP. |
|
Power Supply |
DC 12V 1A |
|
Power Out |
DC 12V 3W MAX |
|
Power Consumption |
1.5W(Device)+OUT(3W MAX) |
